Tone controls on a fuzz
A lot of people find fuzz hard to use in a rig, especially live with a band. When you add that much distortion and clipping, everything evens out. Things that normally poke through the mix get flattened. Fuzz can end up quite woolly and full, or really harsh and cutting depending on the amp.
I took the back off the Embers to access the internal bass cut switch and started experimenting. Gain almost all the way up, bias around three o’clock, volume down into a high headroom amp. Even with the input level pulled back, there was still that fizz sitting on top. Sometimes that sizzle is useful, sometimes it isn’t. I wanted the option.
Bias changes a lot of the character. Sweeping it changes the feel as much as the sound. As it comes down things get louder and fatter, and eventually loud and woolly. Any tone control has to work alongside that.

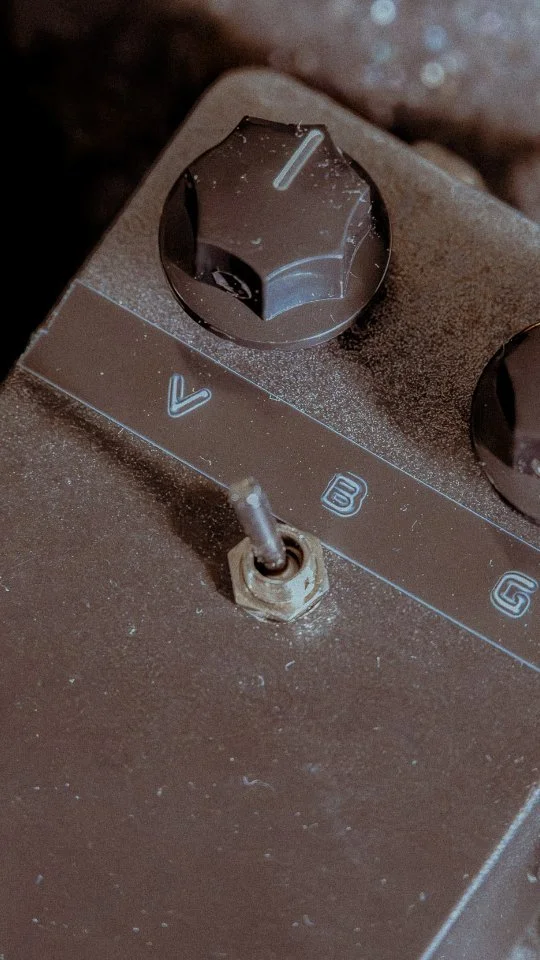

The internal switch on Embers changes the input capacitor. It’s subtle, but switching it tighter does change how the fuzz behaves, especially as you roll things back.
From there I tried a few post-fuzz tone controls. The first one was very extreme. It blanketed the top end, but it also killed volume and didn’t feel that nice. It did a job, but I didn’t love it.
The next option worked differently, but the taper wasn’t helpful and it felt like some mids were disappearing. Changing guitars made that clearer.
The third approach was simpler. A subtle low-pass using a variable resistor and capacitor. Increasing the pot value helped. This one started to feel usable. It took the edge off without smothering everything.
Thinking about it more, I realised the tone control couldn’t really be treated on its own. Working outside the circuit meant loading and impedance weren’t behaving the same way they would inside the pedal.
That led me back to low end. Embers already has a switch that changes how much bass hits the fuzz, but more bass also keeps things fuzzier as you reduce gain. I started experimenting with a filtered clean blend. The split happens before the fuzz, the clean path is high-passed, and it’s summed back in after the fuzz.
From there it goes into a buffer, a makeup gain stage, and the tone control lives as part of that stage. You can tame the high end, bring back some clean weight if you want it, and keep things usable when you underdrive it. It also makes it work on bass without needing external parallel routing.
It’s still a work in progress. Values will need changing once it’s properly inside the circuit. But it feels like the right direction.
